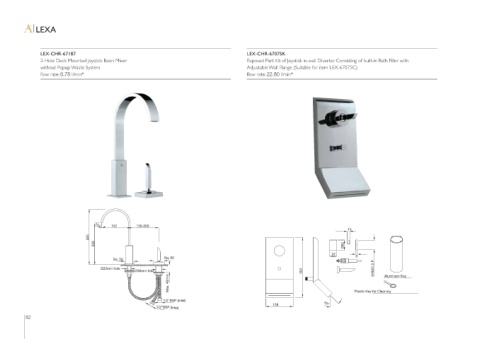

LEXA

LEX-CHR-67187 LEX-CHR-67075K
2-Hole Deck Mounted Joystick Basin Mixer Exposed Part Kit of Joystick in-wall Diverter Consisting of built-in Bath Filler with
without Popup Waste System Adjustable Wall Flange (Suitable for item LEX-67075C)
flow rate: 6.78 l/min* flow rate: 22.80 l/min*

152 150-300
15°
13
305
230 Ø52

37 8
Sq. 52 Sq. 60
Ø23mm hole M46X1.5 P
Ø36mm hole 302 Aluminum Key
Max. 40mm Plastic Key for Cleaning

1/2"BSP (Inlet)
138 45º
1/2"BSP (Inlet)
82
