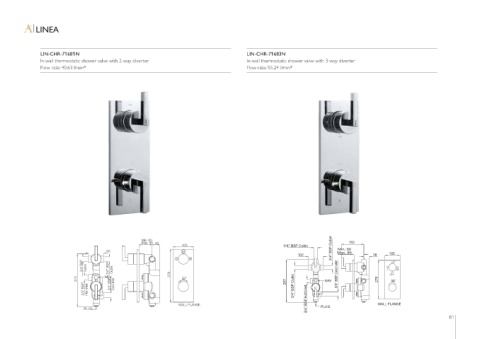

LINEA
LIN-CHR-71681N LIN-CHR-71683N
In-wall thermostatic shower valve with 2-way diverter In-wall thermostatic shower valve with 3-way diverter
Flow rate: 40.63 l/min* Flow rate: 55.24 l/min*
Min. 60
Max. 85 38 155
105 3/4" BSP Outlet
80 OFF 3/4” BSP Outlet Min. 60
102 Max. 85 38 105
I II
3/4" BSP Outlet 3/4" BSP Outlet
270 NRV 270 + 38° 297 NRV 3/4” BSP Cold Inlet 270 38
3/4" BSP Hot Inlet 3/4" BSP Cold Inlet 3/4” BSP Outlet
WALL FLANGE 3/4” BSP Hot Inlet WALL FLANGE
PLUG PLUG
